Alternatives to the Cisco 2511 access router

So the list of equipment is a long and expensive one. There are two components that really stand out as overly expensive, firstly the 2511 access router and then the frame relay switch (2522).

Both are actually fairly easy to find alternatives for. So let’s look at the 2511 access router first.

What we need from the access switch is a bunch of serial ports and a way to access them.

Luckily I found an old Barracuda web filter in the office that was out of support and unused. Although its got a custom OS and was password protected on the BIOS, this was easy to overcome, and really its just an MSI 1U machine. Ideal for a 32bit version of Ubuntu.

I loaded the live CD onto a USB drive, and once got round the BIOS limitation, loaded Ubuntu on it.

Its got a serial port already so connected this to the router.

I enabled ssh

sudo apt-get install openssh-server

and then installed minicom
sudo apt-get install minicom

Connecting with minicom

sudo minicom -s

I set the device (ttyS0) which I found through

Alternatives to Cisco 2511 access router

dmesg | grep tty

Alternatives to Cisco 2511 access router

and connected.

Great for a single connection, but as we are going to need a whole bunch of them we need a better solution. Thankfully this comes in for form of ser2net. Install this using

sudo apt-get install ser2net

and then have a look at the config file:

You should be able to see the ttyS0 connection already in there.

Alternatives to Cisco 2511 access router

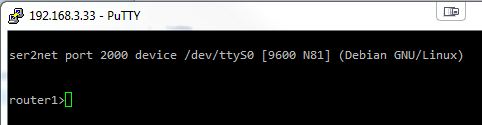

Now I can putty through to port 2000 and straight onto the router!

Alternatives to Cisco 2511 access router

I will need to get a bunch of USB to serial converters, but these are only a couple of pounds on eBay, and a USB hub as its only got 4 USB ports (and maybe a quieter fan as its pretty noisy!). But all in all instead of £150-200 for a 2511 access server, its going to cost me about £20-30. Now I was lucky to not have to buy the server, but ANY linux machine can do the same thing!

We’ll have a look at alternatives to the 2522 in a later post.
